Figure 6.19

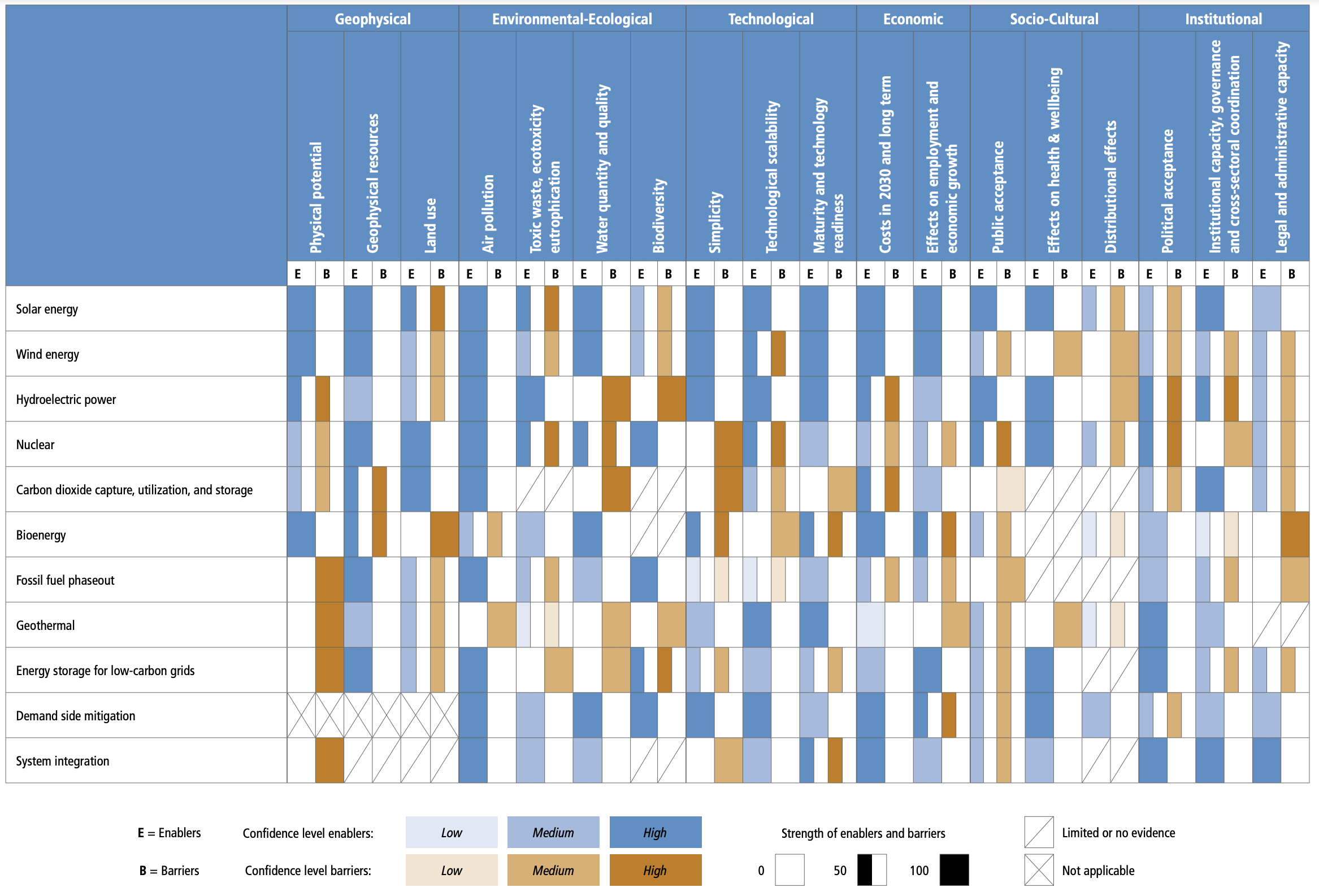

Figure 6.19 | Summary of the extent to which different factors would enable or inhibit the deployment of mitigation options in energy systems. Blue bars indicate the extent to which the indicator enables the implementation of the option (E) and orange bars indicate the extent to which an indicator is a barrier (B) to the deployment of the option, relative to the maximum possible barriers and enablers assessed. An X signifies that the indicator is not applicable or does not affect the feasibility of the option, while a forward slash indicates that there is no or limited evidence whether the indicator affects the feasibility of the option. The shading indicates the level of confidence, with darker shading signifying higher levels of confidence. Appendix II provides an overview of the factors affecting the feasibility of options and how they differ across context (e.g., region), time (e.g., 2030 versus 2050), and scale (e.g., small versus large), and includes a line of sight on which the assessment is based. The assessment method is explained in Annex II.11.
